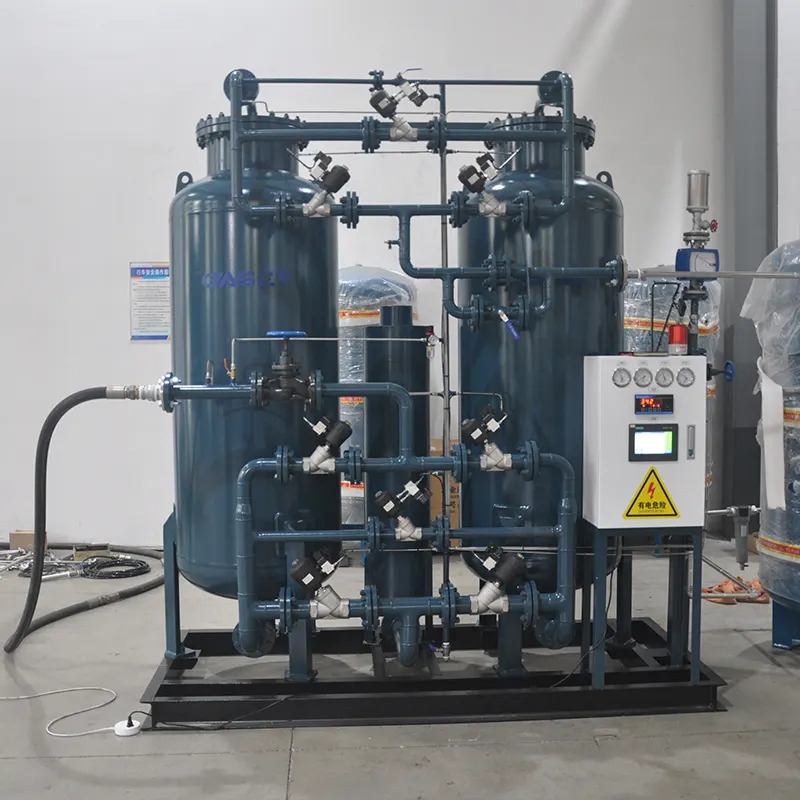

The Large Twin-Tower PSA Industrial Nitrogen Generator by GSE tech supplier integrates pretreatment, separation, stabilized delivery, and intelligent control modules into a single platform, offering strong load capacity and high operational limits, making it the preferred complete equipment solution for large industrial bases establishing their own autonomous gas supply stations.
In its overall architectural design, the Large-Scale Twin-Tower PSA Industrial Nitrogen Generator fully accounts for real-world operating conditions including heavy-duty continuous operation, long-distance pipeline transmission, and complex plant environments. It features a skid-mounted integrated configuration with full system commissioning completed at the factory. The equipment requires no complex on-site assembly—once positioned and connected to utilities, it is ready for operation. It is adaptable to demanding industrial scenarios involving high dust levels, wide temperature ranges, and significant load fluctuations. We provide complete equipment sets and project implementation services to large-scale manufacturing groups, engineering general contractors, and park operators worldwide, with support for on-site condition surveys and equipment trial runs.
The Large Twin-Tower PSA Industrial Nitrogen Generator uses ambient air as feedstock, which first passes through a multi-stage combined purification module to sequentially remove moisture, oil vapor, and solid particulates for gas source pretreatment. The Large-Scale Twin-Tower PSA Industrial Nitrogen Generator achieves physical oxygen-nitrogen separation through dynamic pressure switching. The two adsorption towers alternate between pressurized adsorption and depressurized regeneration cycles: one tower, under high pressure, retains oxygen and delivers qualified nitrogen for output, while the other tower simultaneously undergoes depressurization and desorption to restore adsorbent activity. The two units operate in uninterrupted cycles, forming a closed-loop gas generation process managed entirely by intelligent valve assemblies and control systems, requiring no manual intervention.
The nitrogen produced is widely applicable in heavy-duty industrial scenarios, including metal heat treatment, hazardous chemical storage inerting, pipeline purging and protection, large-scale rubber and plastics production, mining support operations, and boiler maintenance protection. With high flow rates and strong stability, it meets the simultaneous gas demands of multiple production lines and zones. Primary customers include large-scale production groups, industrial park management companies, international engineering contractors, industrial gas operating companies, and major overseas equipment procurement organizations. The system can be flexibly scaled by adding additional units based on total gas consumption, delivery distance, and environmental classifications—enabling single-station expansion or multi-station networking.
The Large Twin-Tower PSA Industrial Nitrogen Generator features optimized tower volumes and flow paths, delivering ample gas output from a single unit with support for parallel multi-unit networking and expansion. The twin-tower alternating operation eliminates regeneration downtime, providing 7×24 continuous and stable gas supply. The tower switching process maintains smooth airflow with no significant fluctuations in pressure or gas concentration—perfectly matching the uninterrupted production rhythm of large-scale facilities.
Equipped with a distributed programmable control system and an independent main control console, the system enables tiered management at single-tower, single-unit, and entire-station levels. It continuously collects operational data, automatically logs operating conditions, and provides proactive alerts for pressure anomalies, pipeline leakage, parameter deviations, and other issues. Remote monitoring and status viewing are supported, significantly reducing on-site staffing requirements.
The system incorporates residual pressure recovery structures that effectively reclaim residual air pressure during tower depressurization, achieving substantial energy savings compared to conventional units of the same specification. Core valve components, sealing assemblies, and adsorbent materials are all industrial heavy-duty grade, offering extended service life and longer replacement cycles. Compared with outsourced gas models, on-site generation delivers outstanding comprehensive cost advantages in large-scale gas consumption scenarios.
All pressure-bearing components of the Large-Scale Twin-Tower PSA Industrial Nitrogen Generator are manufactured in strict accordance with current pressure vessel standards, with all weld joints subject to non-destructive testing (NDT). Airtightness and pressure resistance are verified item by item. Internal pipelines are fabricated from thickened industrial-grade tubing with multi-seal connections, structurally eliminating leakage concerns. Each unit, upon completion, undergoes a 72-hour full-load continuous trial run, and is released for delivery only after all parameters pass inspection. Comprehensive quality documentation and pressure vessel certifications are provided with each shipment, meeting the acceptance requirements of industrial projects both domestically and internationally.
Beyond conventional industrial production protection, the system is also suitable for:
- Oil and gas field nitrogen injection operations
- Large-scale tank farm sealed protection
- Long-distance industrial pipeline purging
- Hazardous chemical storage area fire and explosion isolation
Multiple systems can be combined and networked to establish a regional central gas supply station, delivering nitrogen uniformly to surrounding ancillary enterprises.

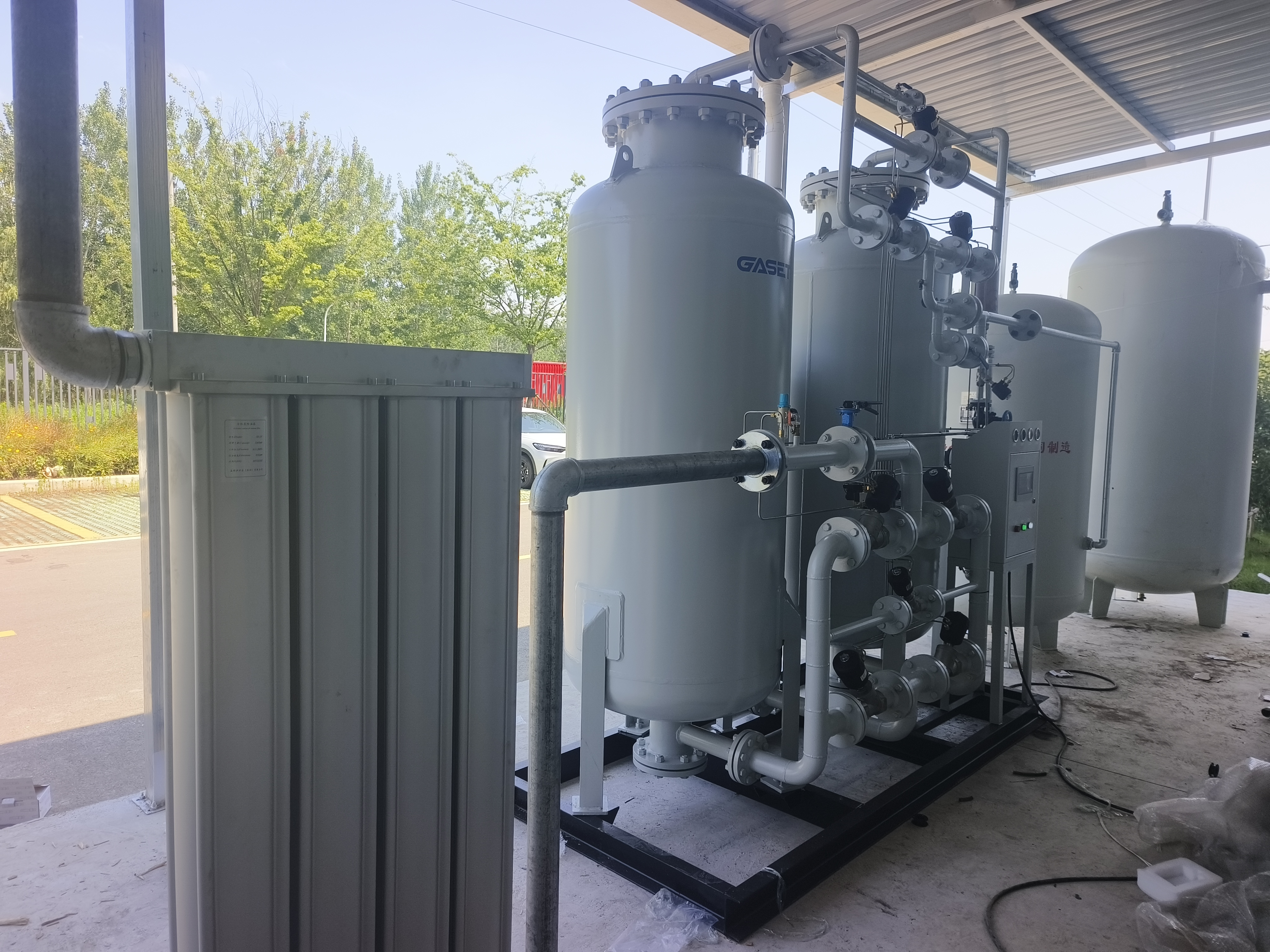

The GASET Large Twin-Tower PSA Industrial Nitrogen Generator features an integrated skid-mounted structure. On-site requirements are limited to a hardened load-bearing ground foundation, with provision for ventilation space, utility connection points, and power supply terminals. After positioning the unit, the installation process involves connecting the front-end air supply line, the plant main gas transmission pipeline, and the power supply, followed by system pressure testing, parameter calibration, and integrated commissioning—ready for official operation with no major civil works required.
For large-scale manufacturing groups, engineering contractors, park operators, and overseas procurement organizations interested in the GASET Large-Scale Twin-Tower PSA Industrial Nitrogen Generator, please provide your total gas consumption requirements, delivery distance, environmental classifications, and site conditions. We will develop a comprehensive system configuration plan, pipeline network design, and a formal quotation tailored to your specific project needs
