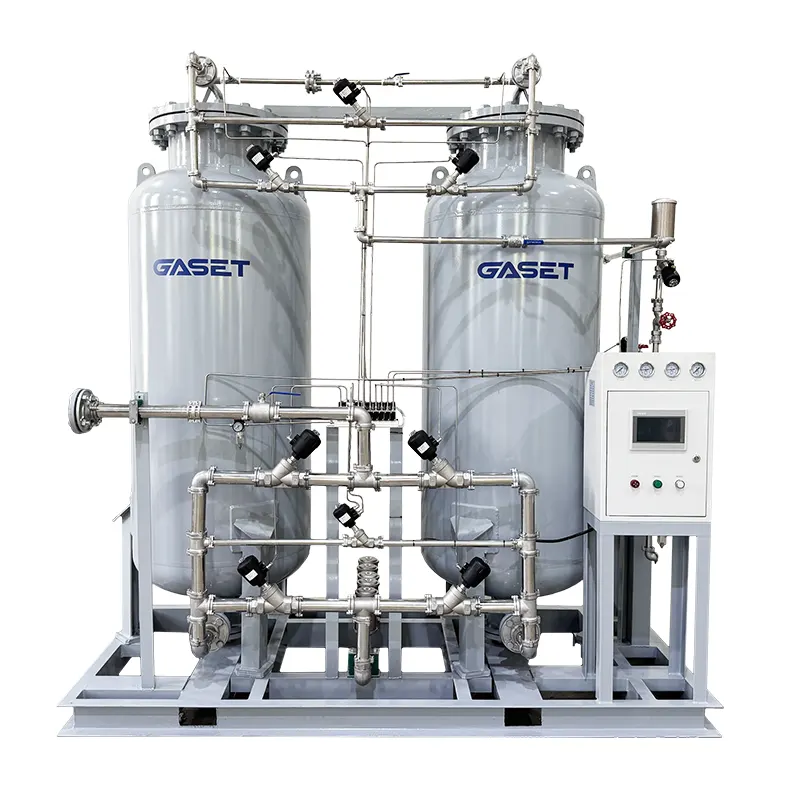

Large Twin-Tower Nitrogen Production System

This China Large Twin-Tower Nitrogen Production System by GSE tech features a Twin-tower layout that is substantially reinforced compared to conventional smaller units—with enhancements in structural load capacity, gas flow throughput, and load adaptability. The system is fully factory-assembled and commissioned prior to delivery, enabling direct connection to the plant's main gas distribution network upon installation. It supports simultaneous gas supply to multiple process units and end-use points under various operating conditions. Customized solutions are available for complex environments, including remote field sites, heavy-load workshops, and explosion-hazard zones.

Operating Principle & Supporting Architecture

Ambient air is first processed through a front-end multi-stage filtration, drying, and pressure-stabilization unit to remove moisture, dust, oil mist, and other impurities before entering the Twin-tower adsorption section. The system relies on two adsorption towers operating in alternating cycles—while one tower performs pressurized adsorption to generate nitrogen, the other simultaneously undergoes depressurization and regeneration. This continuous cycle ensures an uninterrupted gas supply. Downstream surge tanks and precision pressure regulators stabilize the output pressure, while the integrated plant-wide electrical control system coordinates the entire unit's operation, maintaining gas quality and delivery pressure consistently within specified parameters.

Target Industries & Procurement Groups

The system is widely applicable across:

- Petrochemical processing

- Thermal power generation

- Heavy machinery heat treatment

- Storage depot inerting

- Mining operations

- Large-scale rubber and plastics processing

It supports a broad range of process requirements, including production blanketing, pipeline purging, fire and explosion prevention, and material oxidation isolation. Primary customers include large-scale production groups, industrial park operators, international engineering contractors, energy sector enterprises, and major gas service providers. The system can be scaled and functionally customized based on total gas consumption, delivery distance, and explosion-proof classification requirements.

Core Product Advantages

1.High-Capacity Output with Scalable Expansion

With optimized tower volumes and flow-path design, a single system delivers substantial gas production capacity, while multiple units can be installed in parallel to form a larger network—effortlessly covering simultaneous gas demand across multiple workshops and zones. Low airflow resistance ensures minimal pressure drop even over long-distance pipeline transmission, maintaining stable pressure and flow even when multiple high-consumption points are active simultaneously, matching the round-the-clock production rhythm of large-scale facilities.

2. Robust Construction for Demanding Environments

The towers are fabricated from thickened pressure-rated shells, with the entire framework reinforced for seismic resistance and heavy-duty service. The system is designed to withstand harsh industrial conditions, including wide temperature fluctuations, high dust loads, and persistent vibration. The Twin-tower switching logic has been optimized through tens of thousands of simulated operational cycles, ensuring smooth transition sequences that minimize impact wear on molecular sieves. This results in stable long-term continuous operation and significantly reduced maintenance downtime.

3. Energy Efficiency and Low Operating Costs

Incorporating high-flow equalization pressure recovery technology, the system fully utilizes residual pressure energy within the process, achieving substantial energy savings compared to conventional units of the same specification. With rationally configured consumable parts and extended service life for core adsorption media and valve assemblies, the system reduces operating costs across energy, spare parts, and labor—making it ideal for long-term large-scale production deployment.

Extended Application Scenarios

Beyond conventional production protection, the system is also suitable for:

- Oil and gas field nitrogen injection for enhanced oil recovery (EOR)

- Large-scale tank farm explosion-proof sealing

- Boiler pipeline purging and corrosion prevention

- Hazardous chemical warehousing inerting protection

- Large forging and heat treatment processes

It can also function as a regional central gas source station, supplying nitrogen to surrounding ancillary enterprises via a unified distribution network.

Project Planning & Consultation

For Large Twin-Tower Nitrogen Production System projects—including plant-wide centralized gas source planning, complete equipment integration for new facilities, or retrofitting of existing gas source systems—please provide your site's gas consumption requirements, purity specifications, site conditions, and any special operational considerations. We will prepare a comprehensive system layout plan, pipeline network design, and a formal quotation.

Standard units are available for rapid production, while large-scale customized systems are scheduled and delivered in alignment with project milestones. Enterprises, engineering general contractors, and overseas procurement specialists are welcome to inquire, negotiate, and schedule on-site inspections and solution consultations.

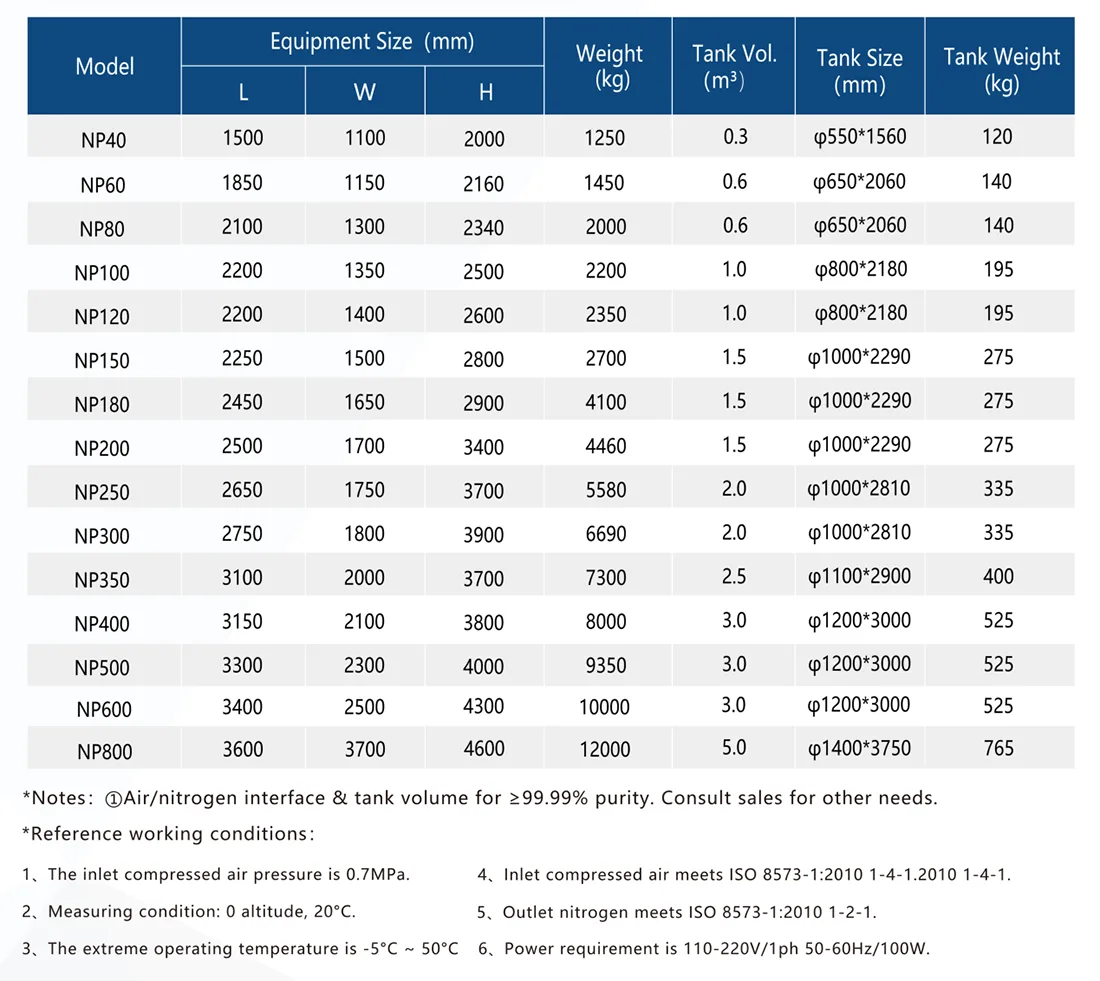

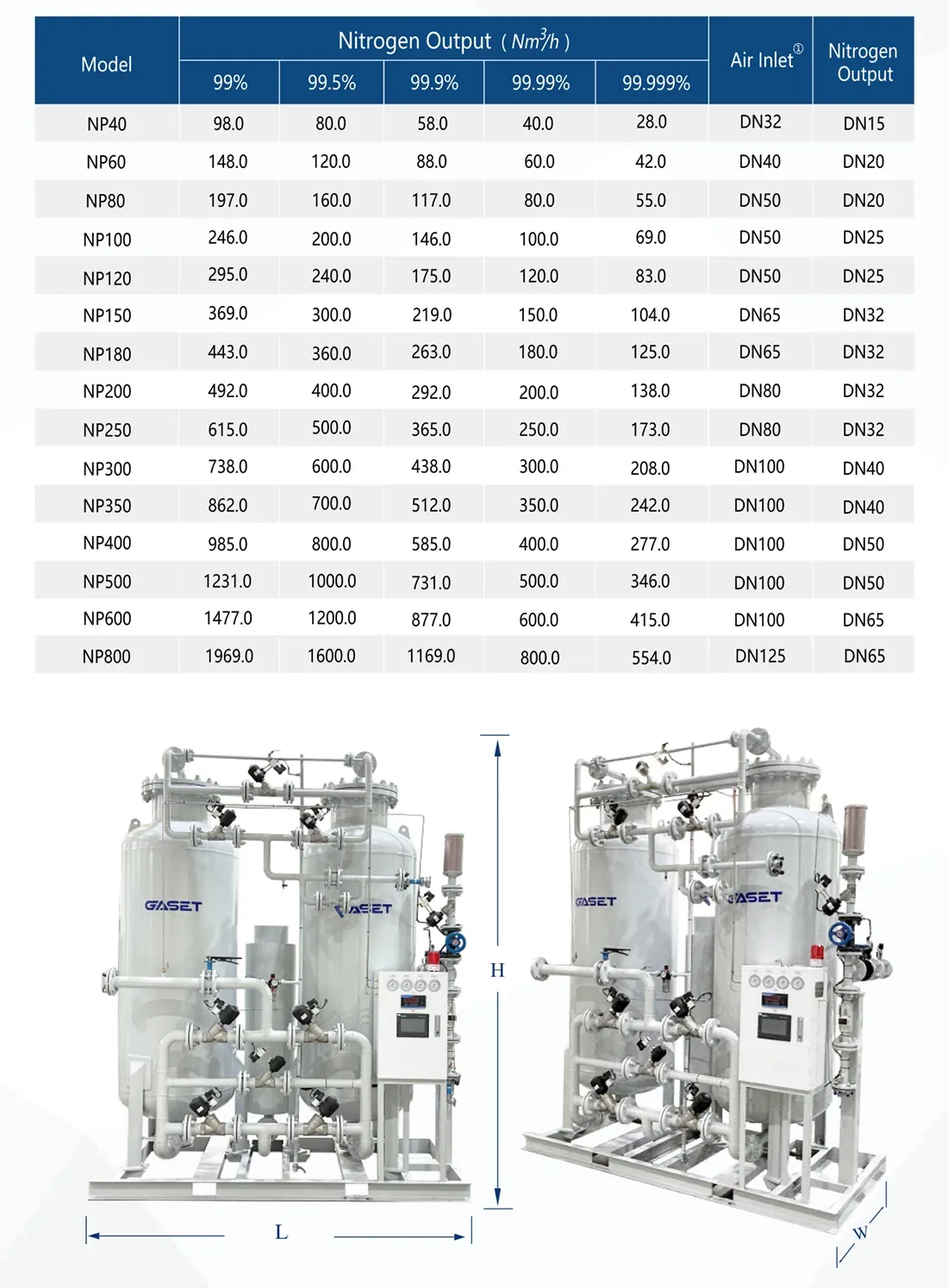

Technical specifications
