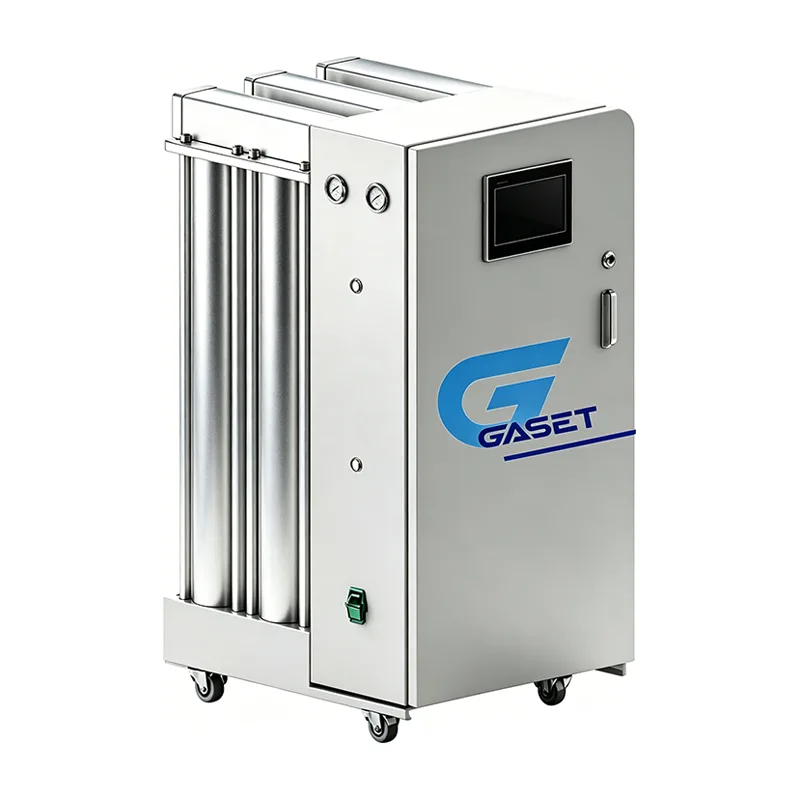

Industrial operations that rely on a consistent and high-purity nitrogen supply face constant pressure to balance performance, scalability, and cost. Traditional nitrogen delivery methods, such as high-pressure cylinders or bulk liquid tanks, often introduce logistical headaches, safety risks, and unpredictable expenses. A Modular Nitrogen Generator solves these challenges by producing nitrogen on-site through a flexible, expandable architecture. This system extracts nitrogen directly from compressed air using advanced separation technology, delivering a continuous flow of gas precisely tailored to your demand. The modular design means you can start with the capacity you need today and easily add more modules as your production grows, without overhauling the entire infrastructure. At GSE tech, we engineer every modular nitrogen generation unit with industrial-grade components to ensure long service life, minimal maintenance, and seamless integration into existing plant setups. Our solutions cover a wide purity range, from 95% to 99.9995%, and flow rates can scale from a few cubic meters per hour up to several hundred, making them ideal for laser cutting, electronics manufacturing, food packaging, pharmaceuticals, and chemical blanketing. Our Modular Nitrogen Generator series includes products such as PSA Modular Nitrogen Generator and Modular Nitrogen Generator for Electronics Industry, etc.
The GSE tech modular system operates on two proven gas separation technologies: Pressure Swing Adsorption (PSA) and membrane filtration. Both methods start with clean, dry compressed air and split it into a concentrated nitrogen stream and an oxygen-enriched waste stream. The choice between PSA and membrane depends on the required purity, capacity, and cost parameters.
PSA technology uses carbon molecular sieves (CMS) to selectively adsorb oxygen molecules under pressure, allowing nitrogen to pass through. Two adsorption vessels work alternately, one producing nitrogen while the other regenerates by depressurizing and flushing out trapped oxygen. This cycle ensures non-stop nitrogen generation. The process can achieve purities up to 99.9995% and is exceptionally efficient for mid-to-high purity applications. GSE tech enhances PSA performance by incorporating pressure equalization stages and optimized valve sequencing, which reduces air consumption and extends the lifespan of the carbon molecular sieve bed beyond typical industry benchmarks.
Membrane nitrogen generators rely on bundles of hollow polymeric fibers. Compressed air flows through the bore of these fibers, and oxygen, water vapor, and carbon dioxide permeate through the membrane walls faster than nitrogen. The result is a dry nitrogen stream at the outlet with purities typically up to 99.5%. Membrane modules have no moving parts inside the separation unit, which translates to quiet operation and extremely low mechanical wear. GSE tech selects membrane materials with high selectivity and durability, ensuring stable performance even in varying ambient conditions.
What truly defines the modular approach is the ability to stack multiple separation units within a single frame or container. Each module operates independently, so if one requires maintenance, the rest continue to supply nitrogen. The control system harmonizes the output, balancing load across all active modules to maintain steady pressure and purity. This parallel architecture delivers inherent redundancy and unmatched flexibility.
