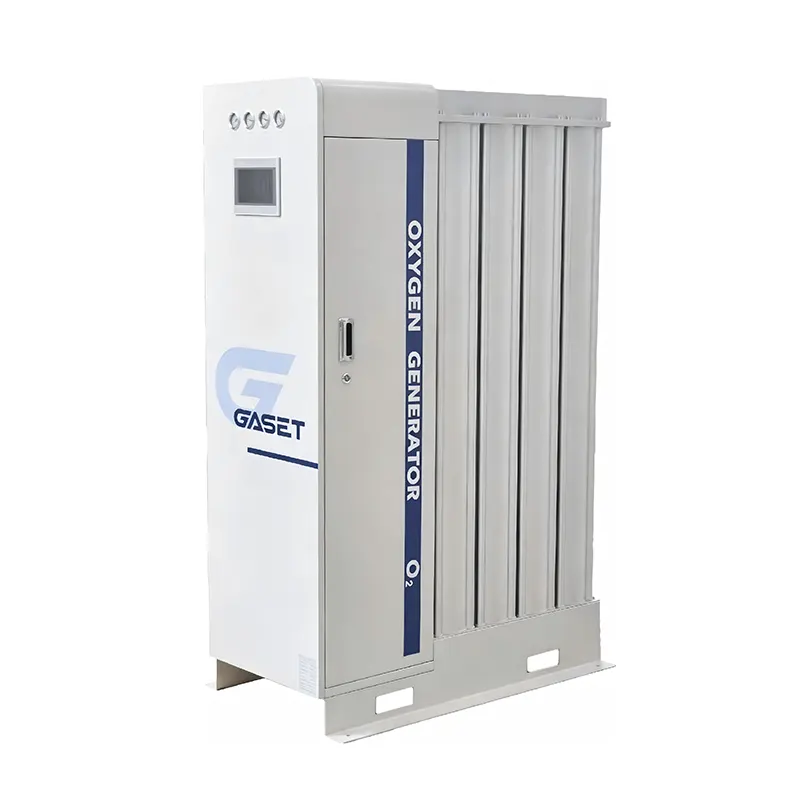

1. The aviation-grade aluminum-magnesium alloy adsorption chamber eliminates the need for annual inspection and registration as special equipment, featuring a long-lasting smooth surface and corrosion resistance. The core industrial advantage of this Skid-Mounted Modular Industrial Oxygen Generation Equipment by GSE tech manufacturer lies in its absence of centralized high-pressure pressure-bearing structures, thus classifying it outside the scope of special equipment requirements. It does not necessitate safety supervision registration, certified personnel monitoring, or mandatory annual safety inspections upon installation, thereby avoiding cumbersome registration procedures and associated labor costs. With its high structural strength and exceptional resistance to high-speed airflow erosion, the adsorption chamber's overall service life exceeds that of traditional steel tanks by over 40%, eliminating the need for frequent component replacements during prolonged industrial operation.
2.The base features a three-dimensional stacking configuration, significantly improving space utilization and requiring less floor area. All functional modules are designed with vertically dense stacking, featuring concealed internal piping systems without exposed redundant lines. Under identical oxygen production flow rates, the entire撬-mounted unit occupies 35% less space than traditional integrated industrial oxygen generation equipment. It is suitable for installation in various environments including outdated low-rise workshops, auxiliary buildings at facility perimeters, enclosed modular units, and compact machine rooms adjacent to furnaces.
3.The multi-level noise reduction design provides comprehensive buffering throughout the entire air intake and exhaust process, resulting in significantly lower operating noise levels. Targeting three primary noise sources in industrial environments—airflow during intake, switching of programmable valves, and pressure relief during exhaust from the adsorption chamber—the system employs layered noise mitigation optimizations: each adsorption module's exhaust port is equipped with a dedicated high-capacity acoustic buffer chamber; programmable valves feature reinforced vibration-damping pads; and the entire unit is externally covered with high-density industrial sound-absorbing insulation material.
4.The skid-mounted system integrates a comprehensive PLC-based intelligent coordinated control system, enabling fully automated operation throughout the entire process for unmanned gas production. It features a multi-module interconnected programmable industrial smart control system paired with a high-definition color visual touchscreen display, allowing real-time monitoring of operational parameters including load levels of each adsorption module, oxygen concentration, output pressure values, cumulative equipment runtime, and filter wear status.
1. Not for special equipment design, no annual inspection required, no need for dedicated personnel on duty, extremely simple operation and maintenance.
2. Three-dimensional stacked skid-mounted structure, extremely small footprint, highly adaptable to the site.
3. Full-link multi-level noise reduction structure, industrial low-noise operation.
4. Skid-mounted integrated intelligent control system, fully automated operation without human intervention throughout the process.
The skid-mounted modular industrial oxygen generation equipment needs to be matched with clean, dry, and oil-free compressed air intake conditions. It is necessary to prevent the entry of long-term high-dust, high-humidity, and heavy-oil pollution air sources into the equipment, to prevent rapid filter core wear and the decline of molecular sieve adsorption performance, and to ensure the long-term stability of oxygen concentration and gas production efficiency.
Although the equipment is compact in size, during installation, side and top heat dissipation and maintenance spaces need to be reserved. It is prohibited to completely seal and cover, blocking the sound-absorbing and noise-reducing layer and heat dissipation area, to avoid excessive temperature accumulation of the entire machine and poor heat dissipation, resulting in abnormal operating load.
The equipment is a non-specialized equipment standardized integrated structure. Unauthorized modification of aluminum-magnesium alloy cavities, buffer cavities, shock-absorbing structures, and built-in pipelines is strictly prohibited. Unauthorized modifications will damage the noise reduction performance, air tightness, and module linkage logic of the equipment, causing equipment failures.
Daily operation does not require complex maintenance, but it is necessary to regularly check th
e real-time parameters on the touch screen, pay attention to filter core wear prompts, pressure fluctuations, and concentration changes, and replace filter consumables on schedule to prevent the accumulation of intake impurities and protect the core molecular sieve and adsorption cavity.
The equipment supports continuous operation 24/7, but it is not recommended to operate beyond the rated load continuously for a long time to prevent frequent and high-frequency switching of control valves, intensified air flow scouring, and affecting the lifespan of components and the stability of the entire machine.
During daily cleaning and inspection, avoid knocking, scratching, or damaging the high-density sound-absorbing and insulation layer of the machine to prevent damage to the noise reduction structure, resulting in an increase in operating noise and maintaining a low-noise production environment in the factory.
After the equipment is shut down and restarted, it needs to undergo a no-load self-check run to confirm that all modules are linked normally, the pressure is stable, and there are no abnormal noises before officially connecting to the production line for gas supply, ensuring the safety and stability of industrial production gas supply.
