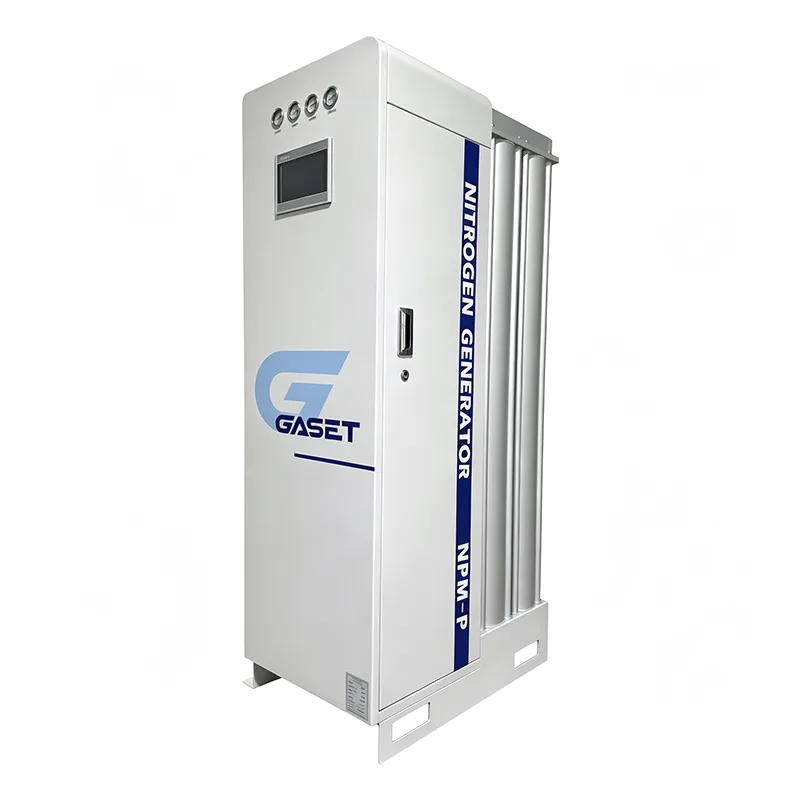

Ultra-High Purity Modular Nitrogen Generator for Electronics Industry

The Ultra-High Purity Modular Nitrogen Generator for Electronics Industry, developed by GSE tech Factory, departs from the single filtration structure of conventional nitrogen production equipment. It adopts a dual-level process logic of "first nitrogen production, then deep purification and refinement", using the factory's regular compressed air as the gas source. Through the core separation unit, basic nitrogen production is completed, and then, via the exclusive multi-level composite purification architecture, trace oxygen, residual moisture, and ultra-fine particles, which are highly prone to causing process defects in electronic components, are specifically removed. This ensures that production problems such as oxidation during precision processing, pinholes, coating defects, and poor welding are eliminated at the source of the gas supply.

The entire machine is designed in accordance with the standards of an electronic cleanroom, featuring a fully sealed dust-free structure design. The machine body has no dust accumulation dead corners and is easy to clean and maintain. It is compatible with the clean control specifications of semiconductor dust-free workshops and precision electronic manufacturing workshops, and will not cause secondary pollution to the high-precision production environment.

It also supports precise control of purity gradients. According to the differentiated gas usage standards of different processes such as chip packaging, wafer processing, photoelectroplating, and precision component welding, it can stably output ultra-high-purity nitrogen gas, fully meeting the process requirements of the entire high-end electronic manufacturing process.

The equipment operates in an automated closed-loop manner, with stable gas production purity, controllable dew point parameters, and extremely high cleanliness of the gas source. It completely resolves the industry pain points of traditional bottled high-purity nitrogen gas and liquid nitrogen supply, such as fluctuating purity, high consumable costs, and gas supply interruptions. It can provide 24-hour uninterrupted, standardized, and zero-pollution inert gas protection for high-end electronic manufacturing enterprises, effectively improving product yield, reducing the scrap rate of precise processes and long-term gas usage costs. It is the core supporting equipment for standardized production in the high-end electronics, semiconductor, and optoelectronic industries.

Multi-dimensional Content Expansion

1. R&D and Production Perspective: In response to the stringent requirements for gas purity and cleanliness in the electronics industry, our company has specifically developed ultra-high-purity nitrogen generators with dedicated purification modules for this sector.

2. From the perspective of gas source and process: The equipment uses compressed air as the primary gas source, first producing nitrogen through a PSA module, then connecting to a multi-stage purification system for thorough removal of oxygen, water, and trace impurities.

3. Application Perspective: This equipment targets the high-end electronic manufacturing segment and is widely used in processes such as wafer processing, chip bonding, semiconductor packaging, precision component welding, and optical electronic coating.

Key Product Features

1. Multi-stage deep purification with controllable purity gradients: The ultra-high-purity nitrogen generator for the electronics industry features a dedicated deep purification module that employs a composite purification process, enabling stable enhancement of nitrogen purity to 99.9999%, with strict control over trace oxygen levels and dew point parameters.

2. Dedicated design for cleanrooms: The entire unit adopts a dust-free structural design with seamless sealing and easily cleanable surfaces, eliminating any dust accumulation dead zones, fully complying with electronic Class-grade cleanroom management standards.

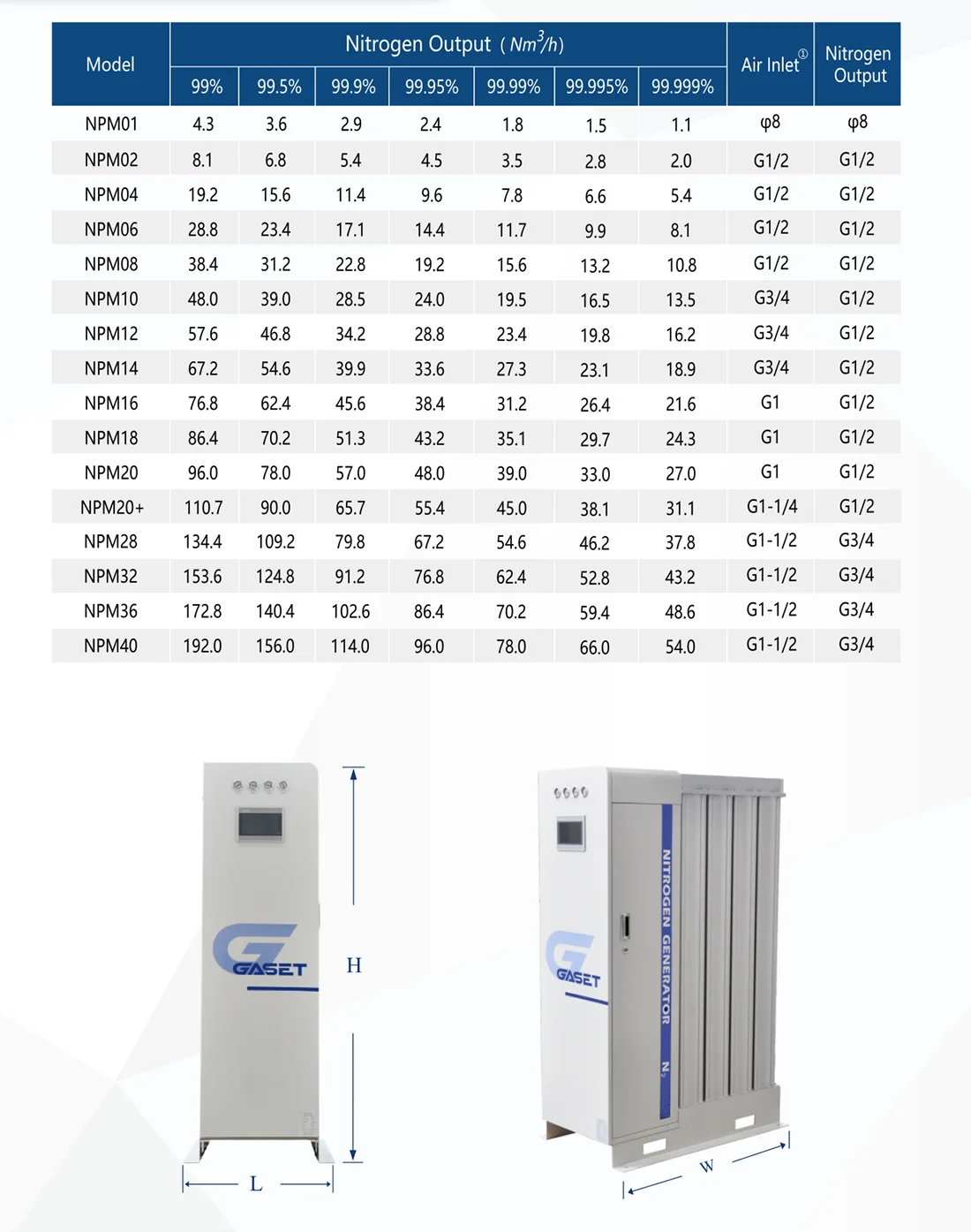

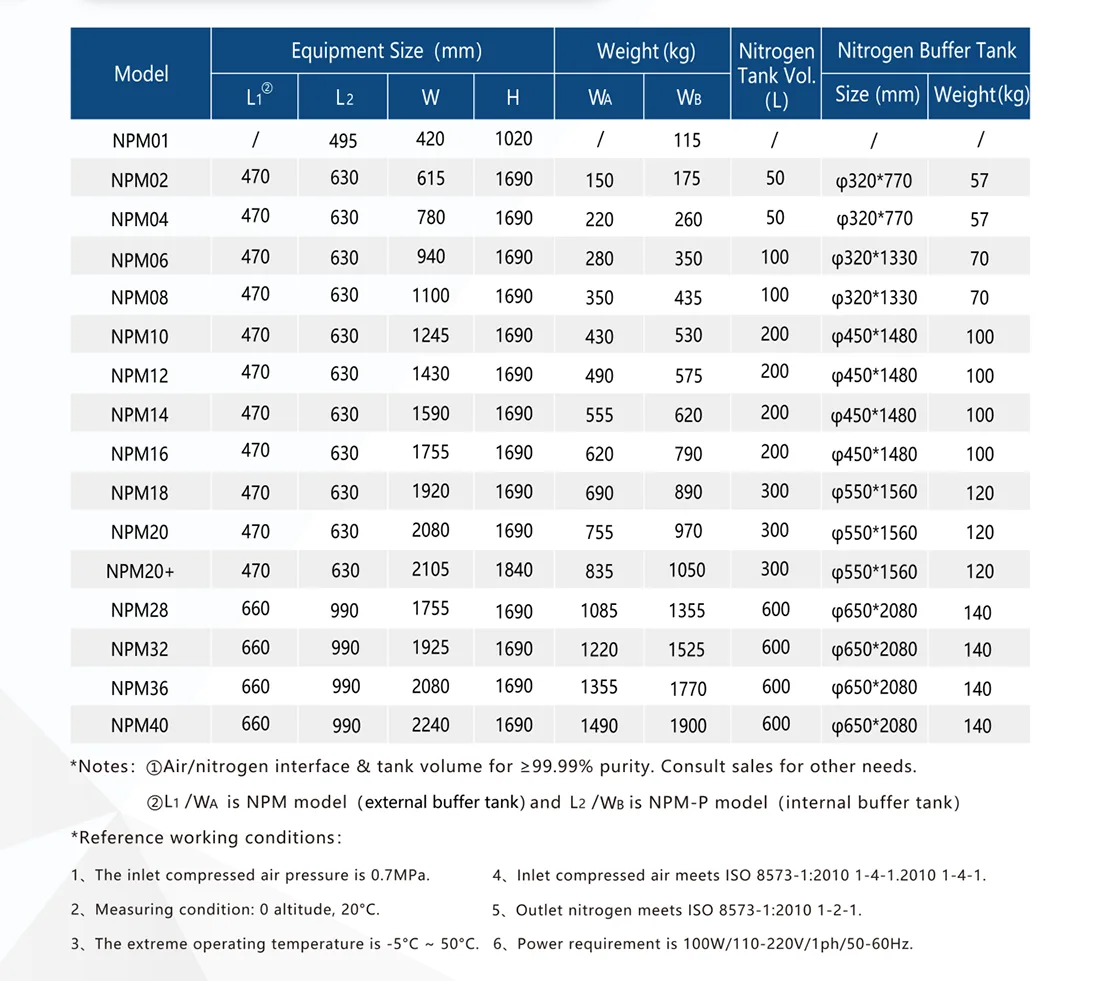

Technical specifications
