Unlike traditional PSA purification or cryogenic refining processes, this Membrane Separation Nitrogen Purification System by GSE Tech supplier operates at ambient temperature and pressure—requiring no phase change, no adsorbent regeneration, and generating no secondary contamination. It can be directly connected to upstream nitrogen generation equipment or compressed air networks, achieving nitrogen purification in a single step. It is the energy-efficient choice for small-to-medium flow, medium-to-high purity nitrogen applications.

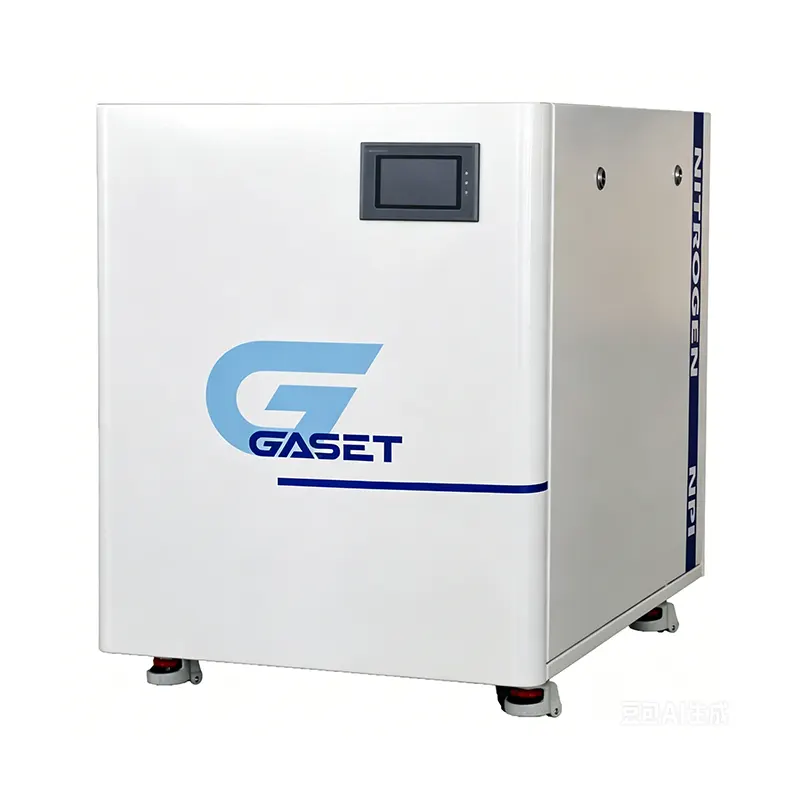

The system features a modular skid-mounted design with a compact layout and no exposed piping, allowing flexible integration into existing production lines or independent installation—requiring no dedicated equipment room or complex infrastructure. It accommodates various feed gas sources, including air and crude nitrogen. Factory-preset purity parameters are adjustable from 95% to 99.99%, with instant start-up and no complex commissioning. It is widely used in electronics manufacturing, food and pharmaceuticals, chemical energy, and precision processing—where nitrogen quality is critical.
The system operates on the principle of selective gas permeation, utilizing significant differences in permeation rates between oxygen, moisture, carbon dioxide, and nitrogen in polymer membrane materials. Feed gas enters the system and first passes through a three-stage precision purification unit that removes dust, oil, and free water to prevent membrane contamination. The purified gas then enters the core hollow fiber membrane stack, where membrane filaments made from high-performance polymers (polysulfone, polyimide, etc.) contain micron-sized pores. Under pressure drive, smaller impurity molecules—oxygen, moisture, and carbon dioxide—permeate rapidly through the membrane walls and are vented. Nitrogen molecules, with slower permeation rates, are retained and concentrated. Through multiple membrane modules in series, purity is progressively enhanced, with a final stabilization module regulating pressure and dew point to deliver high-purity nitrogen. The entire process operates at ambient temperature with no phase change, no energy-intensive regeneration, and immediate high-purity output upon startup—suitable for 24/7 continuous operation.

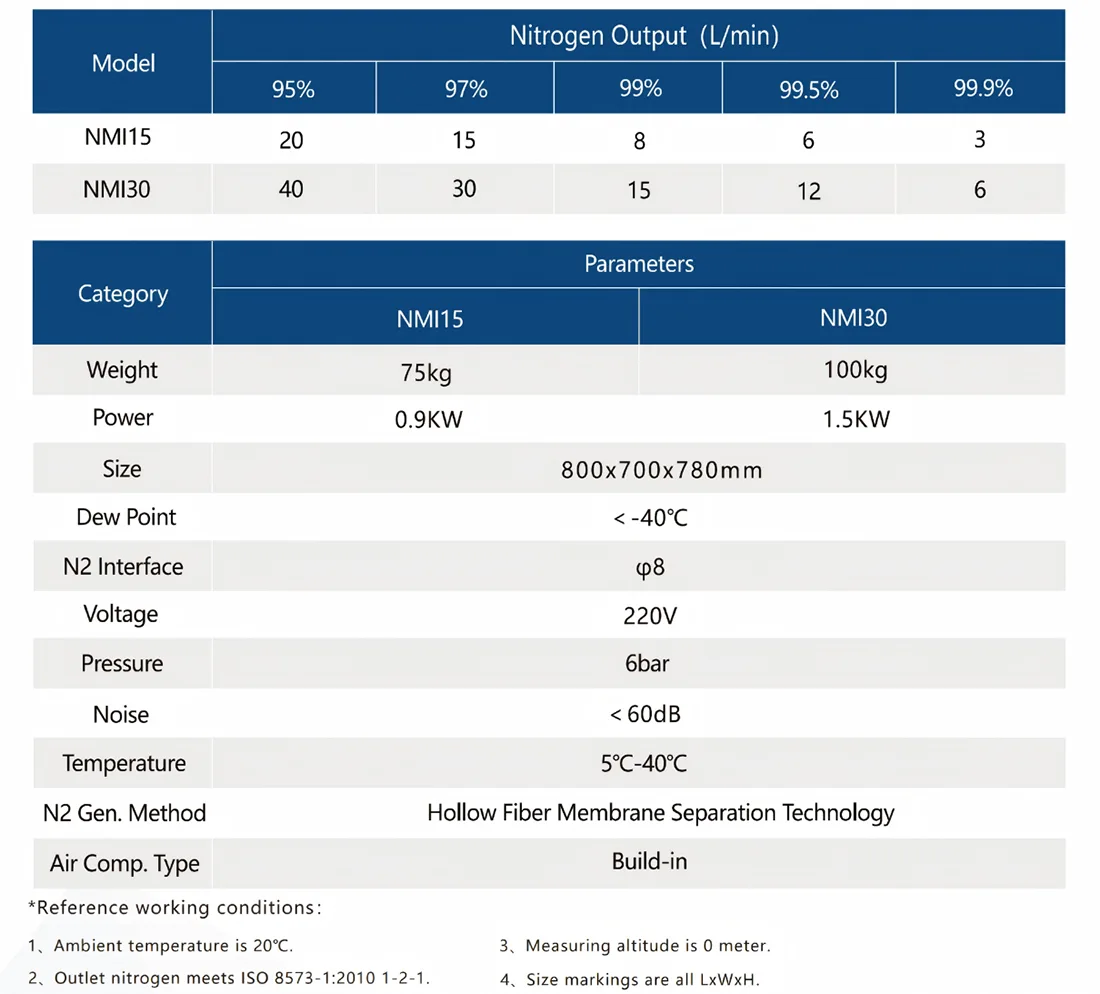

The Membrane Separation Nitrogen Purification System utilizes contamination-resistant hollow fiber membrane modules with high separation precision, stably purifying ordinary air to 95%–99.99% purity, with multiple stages in series achieving 99.999% ultra-high purity. Intelligent adjustment of inlet pressure and flow enables precise matching of purity requirements across different applications. Nitrogen dew point reaches as low as 50°C, oil-free, moisture-free, and impurity-free—completely resolving the issues of insufficient purity and excessive impurities in ordinary nitrogen.
Operating at ambient temperature and pressure with no heating, cooling, or adsorbent regeneration, energy consumption is only 30%–50% of PSA purification processes and over 70% less than cryogenic refining. The system has no high-frequency switching valves or reciprocating tower movement, resulting in low noise, no mechanical wear, and long-term continuous stable operation—suitable for high-load industrial scenarios.
The system features a skid-mounted integrated structure with a footprint just one-third that of traditional purification equipment, enabling installation directly beside production lines without complex piping. The unit contains no wearable moving parts; membrane modules have a normal service life of 8–10 years. Daily maintenance is limited to periodic filter element replacement and condensate drainage—no specialized personnel are required, significantly reducing long-term operating costs.
Traditional PSA purification systems consume high energy with frequent valve cycling and require regular molecular sieve replacement. Cryogenic refining demands extremely high energy consumption, complex operation, and significant capital investment. Both require large footprints and complex installation, with PSA systems offering limited purity stability and cryogenic systems delivering high purity only at a premium cost.
In contrast, the GASET Membrane Nitrogen Purification System delivers ambient-temperature membrane separation—energy-saving, quiet, and highly stable. Its modular design enables quick installation with minimal maintenance. Purity is precisely adjustable with a low dew point, offering long-term value as the optimal solution for small-to-medium flow high-purity nitrogen purification.
For domestic and international customers interested in purchasing the Membrane Separation Nitrogen Purification System, upgrading existing nitrogen equipment, or requiring custom high-purity nitrogen sources, please provide your feed gas type, flow rate, required purity/dew point, supply voltage, and installation space. We will recommend the optimal model based on your operating conditions. Standard models are available from stock; non-standard configurations (purity, flow rate, connections) are available with fast production lead times. Electronics companies, food/pharma manufacturers, chemical/energy enterprises, and trading partners are welcome to inquire. Free sizing consultation, on-site trial, and technical training services are available.
