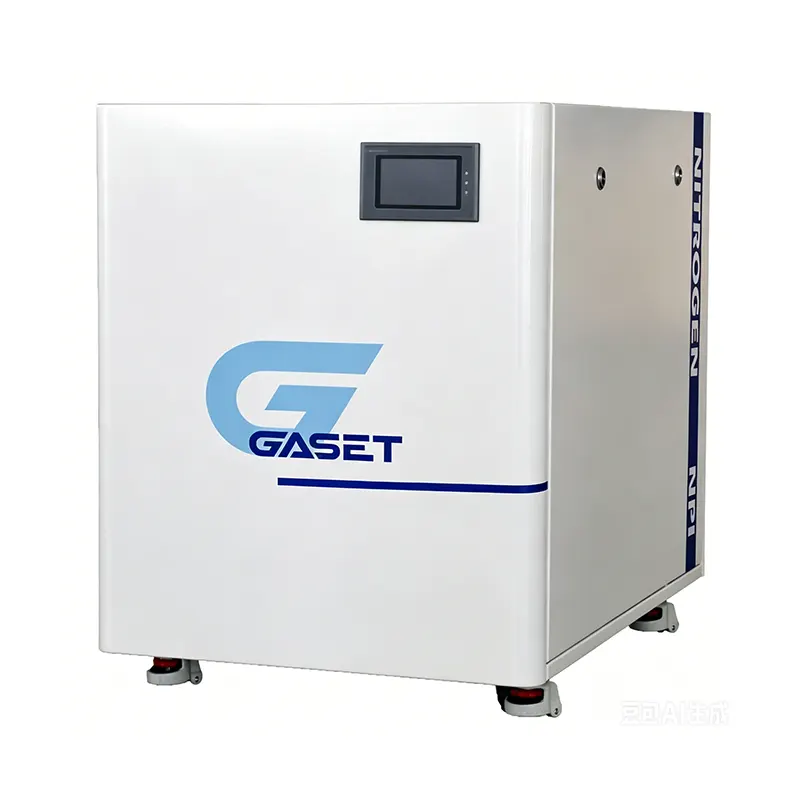

Hollow Fiber Membrane Separation Compact Nitrogen Generator

The Hollow Fiber Membrane Separation Compact Nitrogen Generator supplied by GSE tech factory features a bundled integrated membrane stack design that minimizes gas path length and reduces pressure losses, suitable for confined indoor spaces, workstation side areas, and storage compartments. The system eliminates complex solenoid valve assemblies and pressure-swing regeneration systems, simplifying operation to the point where even untrained personnel can use it. Factory preset purity and pressure parameters eliminate the need for on-site commissioning. We serve global small enterprises, laboratories, processing workshops, and overseas distributors, with support for voltage and connection interface customization.

Operating Principle

Ambient air at normal temperature and pressure passes through a three-stage micro-integrated filter to remove moisture, particulates, and oil aerosols. The purified air then enters the bundled hollow fiber membrane stack, where gas separation occurs based on molecular kinetic diameter differences: smaller molecules such as oxygen and carbon dioxide permeate through the membrane walls and are vented, while larger nitrogen molecules are retained and concentrated within the membrane tubes. A downstream stabilization and throttling module fine-tunes purity and pressure, delivering finished nitrogen directly—with no phase change, no alternating pressurization, and no adsorbent regeneration waiting time.

Applications & Target Customers

Our Hollow Fiber Membrane Separation Compact Nitrogen Generator is ideal for small-flow gas applications, including small-part welding oxidation prevention, laboratory reagent storage, small-batch food packaging nitrogen flushing, precision parts anti-corrosion storage, small-tank micro-pressure inerting, and laser processing protection. Suitable environments include clean rooms, physical and chemical laboratories, light industrial workshops, and storefront processing spaces. Primary customers include research institutes, small-to-medium light industrial processors, precision hardware workshops, cross-border small equipment traders, and laboratory engineering contractors. Single units serve individual workstations; multiple units can be paralleled for modest capacity expansion.

Core Differentiating Advantages

1. Bundled Membrane Stack – Rapid Response

The high-density bundled hollow fiber membranes provide a larger separation area per unit volume, delivering qualified nitrogen within 30 seconds of air intake—no preheating, no adsorption regeneration waiting. Output is linear and stable with no pressure pulsation, ensuring process stability for precision small-part work.

2. Compact Integrated Design – Zero Site Modification

The cabinet-style compact footprint requires minimal floor space and can be wall-mounted, shelf-installed, or placed directly on countertops. Built-in silent vibration-damping pads eliminate the need for fixed anchors, dedicated equipment rooms, or ventilation/explosion-proof enclosures. A 220V power supply is sufficient—zero site modification cost.

3. Static Separation – No Wear Parts

Unlike Twin-tower PSA systems, this unit operates on static membrane permeation with no high-frequency switching valves, no pressure vessels, and no reciprocating mechanical components. With virtually no wear parts, it supports long idle standby and intermittent start/stop operation without frequency limitations—ideal for non-continuous workstation use.

4. Simple Intelligent Control – No Training Required

The integrated micro-intelligent stabilization module enables one-touch start/stop with fully automatic operation, self-balancing inlet flow, and automatic impurity venting. An onboard purity indicator automatically diverts substandard gas, preventing poor-quality nitrogen from reaching the workstation. No dedicated supervision or technical expertise is required.

Comparative Advantage Over Alternatives

Traditional small PSA twin-tower nitrogen generators suffer from frequent valve cycling, high noise levels, consumable replacement every six months, mandatory annual pressure vessel inspections, purity drift with frequent starts, and complicated maintenance. Outsourced nitrogen cylinders involve inconvenient handling, limited single-use capacity, high-pressure storage risks, repeated procurement costs, and unreliable supply timing.

In contrast, the GASET Compact Hollow Fiber Membrane Nitrogen Generator requires no annual inspection, no routine maintenance, allows unrestricted start/stop, operates silently, and generates nitrogen directly at the point of use. For small-volume gas users, the long-term operating cost is significantly lower than both cylinder supply and small-scale PSA systems.

Inquiry & Consultation

For more information or to discuss your specific gas requirements, please contact us with your flow rate, purity needs, power supply specifications, and site conditions. We will recommend the optimal configuration for your application.

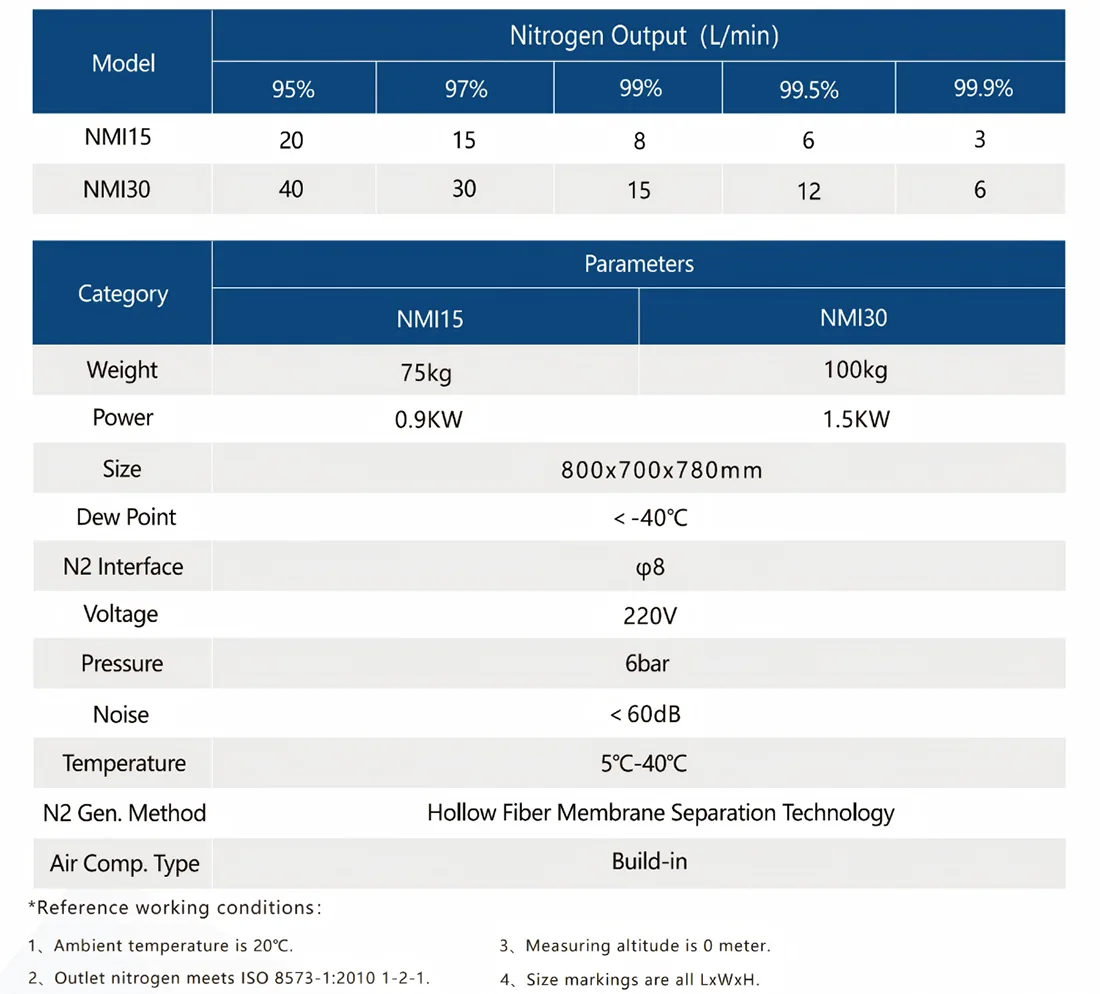

Hollow Fiber Membrane Separation Compact Nitrogen Generator Technical specifications
