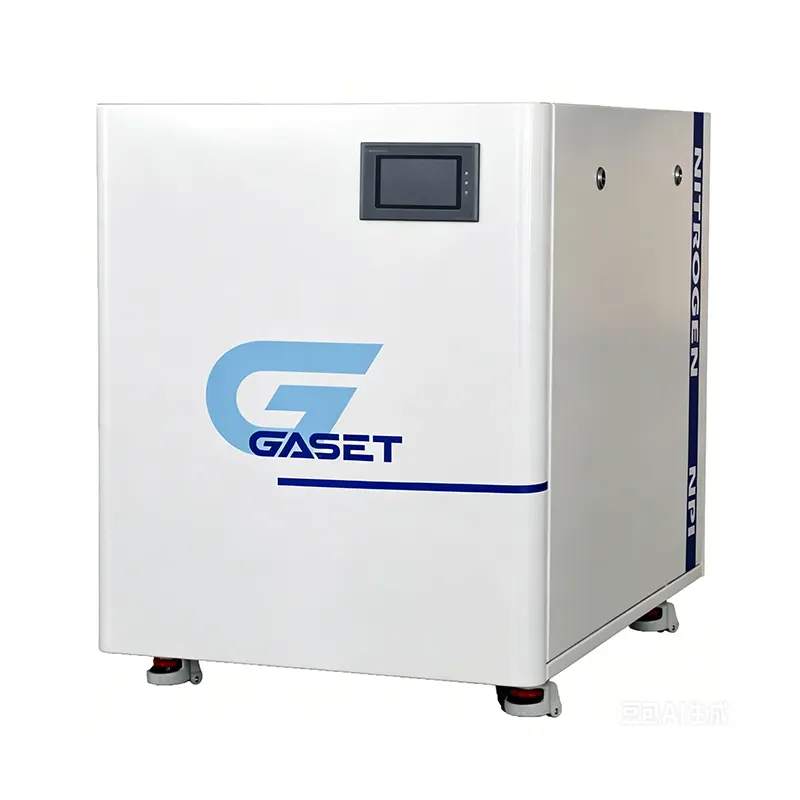

3D Printing Anti-Oxidation Integrated Nitrogen Production Equipment

The 3D Printing Anti-Oxidation Integrated Nitrogen Production Equipment by GSE tech factory employs a precision pressure alternating separation process to differentiate gas components based on molecular adsorption characteristics, rapidly removing active gases such as oxygen and carbon dioxide while purifying the atmosphere. High-purity nitrogen is then concentrated through an adaptive damping pressure chamber that regulates flow rate and pressure. Integrated with an external sensor module, this system continuously monitors oxygen levels in the printing chamber, automatically replenishes nitrogen when needed, limits flow to maintain stable pressure, and dynamically keeps oxygen concentrations within specified process thresholds.

Key advantages of the process-adaptive core product

1. Integrated machine-unit design enabling synchronized start/stop coordination with 3D printing; a comprehensive integrated nitrogen generation system with anti-oxidation features and complete auxiliary components, eliminating the need for separate air compressors, buffer tanks, or external drying units; equipped with built-in industrial communication interfaces for direct connection to 3D printer control systems, achieving synchronized nitrogen supply during startup, stable pressure maintenance with oxygen assurance during printing, and delayed air exchange upon shutdown.

2. Precise nitrogen control under low-oxygen conditions to completely eliminate printing oxidation defects. The system features specialized calibration for gas separation accuracy, with nitrogen purity adjustable continuously from 99.9% to 99.999%, enabling precise regulation of oxygen levels down to 5 ppm as required. It is suitable for both conventional printing and high-standard printing applications in the aviation and medical fields.

3. Dust-resistant heavy-duty housing designed for printing workshop conditions: The entire unit features anti-static and dust-sealing optimization to prevent metal powder particles and polymer dust from entering the internal air valve system, making it suitable for dusty working environments in printing workshops.

4. Self-adaptive energy-saving gas supply under operating conditions, reducing costs through demand-based gas consumption. Equipped with a proprietary intelligent algorithm for additive manufacturing, this integrated nitrogen generation system differs from traditional constant full-load operation modes. It automatically adjusts the gas flow rate and power consumption based on the sealing integrity of the printing chamber, door opening frequency, and material oxidation sensitivity.

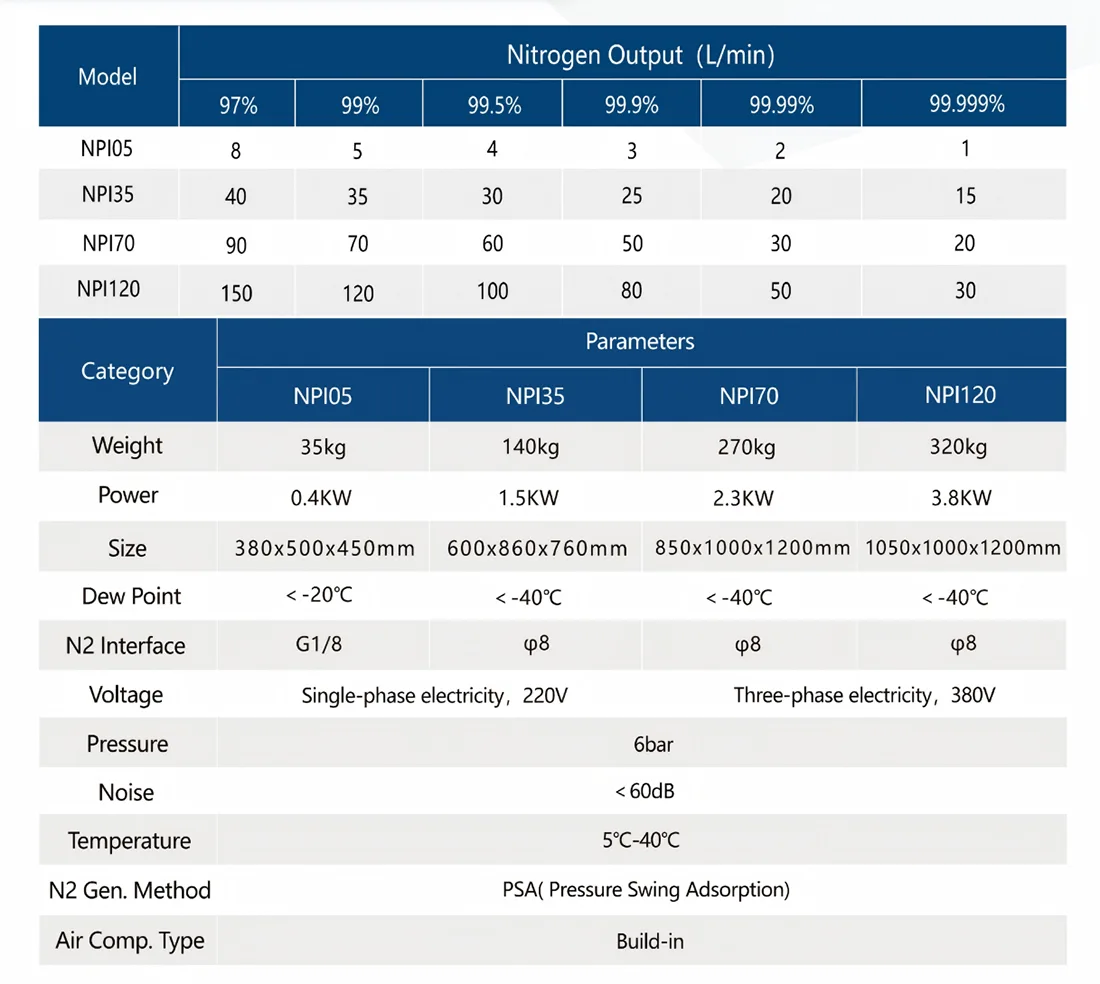

Technical specifications
